Want to design mechanisms that will never jam?
This page and video will cover the topics of guide ratio and sensitivity and a few simple principles to make robust mechanisms that will never jam.
Robust Design PRinciples: Master Guide Ratio and Sensitivity
Guide Ratio to Avoid Jamming
• Ensure that B/2A is greater than the friction coefficient between the slider (blue) and the frame (grey).
Optimize Guide Ratio
The rule of thumb to ensure the best sliding capability of a slider with as little friction as possible (and with minimum variation):
• Minimize A (ideally move the point of attack to the center).
• Maximize B (increase the distance as much as possible).
Understanding Sensitivity
A sensitivity analysis reveals sensitive parameters in a design/calculation.
• The sensitivity value represents a gradient/slope for a parameter in an equation.
• It is calculated by adding variation of 0.1 (absolute) to a given parameter and comparing it the end result.
In example a sensitivity of 80 corrosbonds to a 0.1 unit change in the given parameter, then impacts in a 8 unit change in the end result. A sensitivity of 20 corrosbonds to a 2 unit change in the end result.
• Sensitivity studies are useful to identify tricky parameters and it is always adviced to try to lower the sensitivity as much as possible by all parameters.

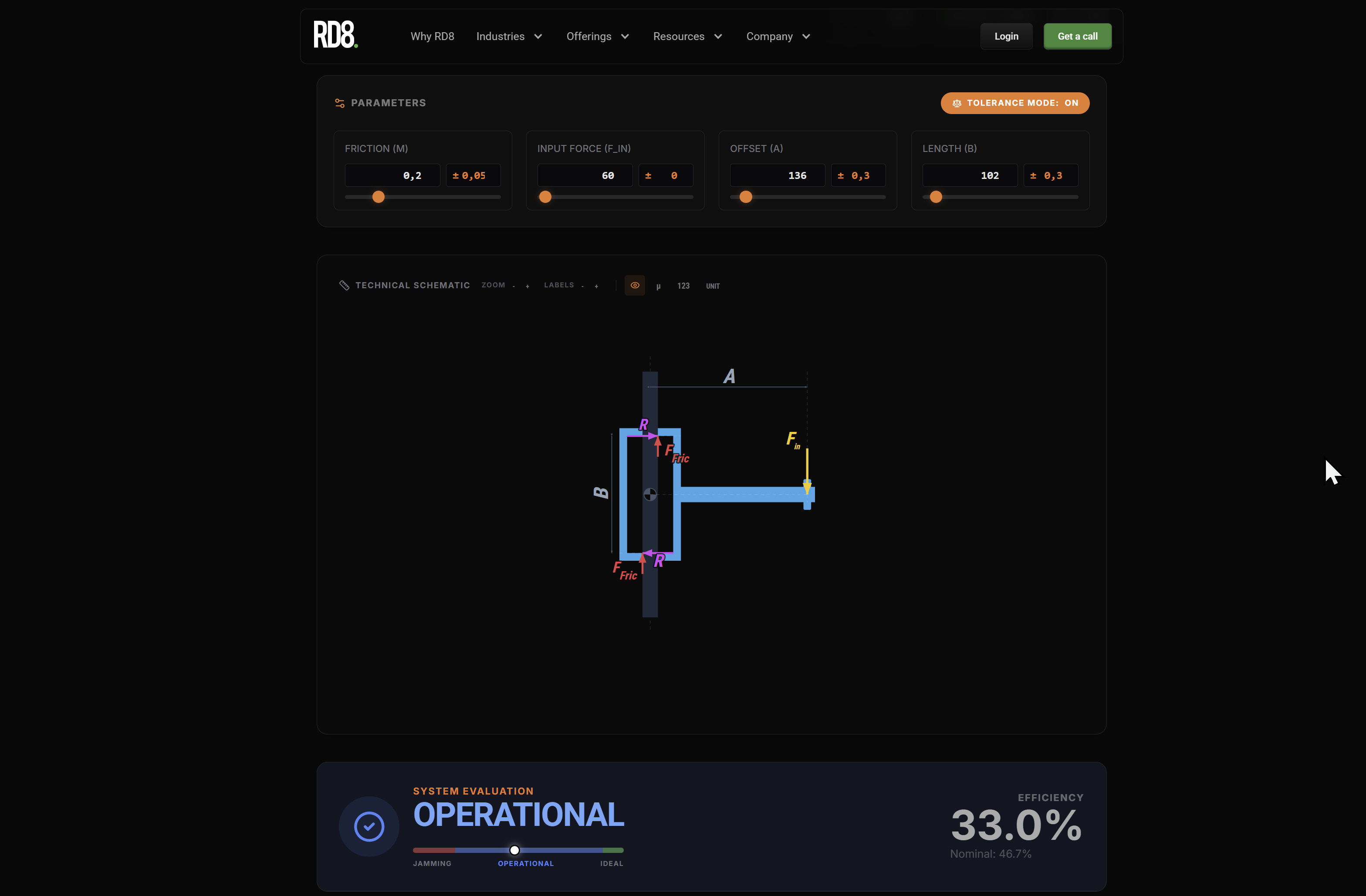

Quick Online Calculator: Guide Ratio
Try our free online calculator for Guide Ratio.
- Quickly illustrate and dimension
- Calculate Guide Ratio
- Quick settings for optimization
