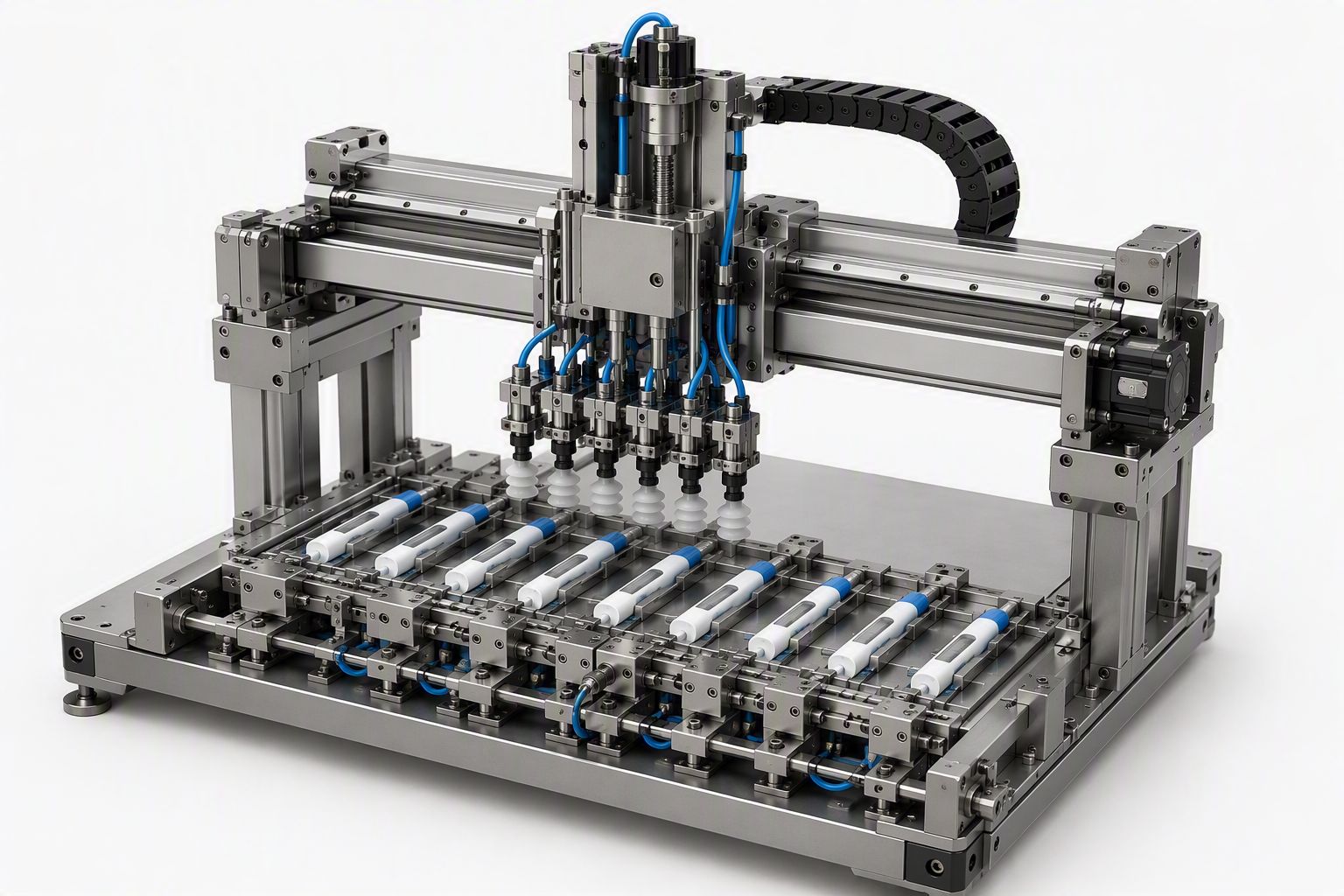

A Robust Design review and redesign was performed on a complex pick and place unit (PPU) for auto-injector assembly with ~270 parts per unit on a fully automated aseptic assembly line delivering 50 units/min. The review and redesign was done using the RD8 Software.
‍
The goal was to mitigate excessive use of fine tolerances to cope with 116 additional parameters needed for PPU to work. The baseline is 1 issue per assembly.

A Robust Design review was done on the 3D CAD model via the RD8 Platform, an analyssi of assembly process was done and on-the-job training in robust design methodology was provided for 5 engineers.
